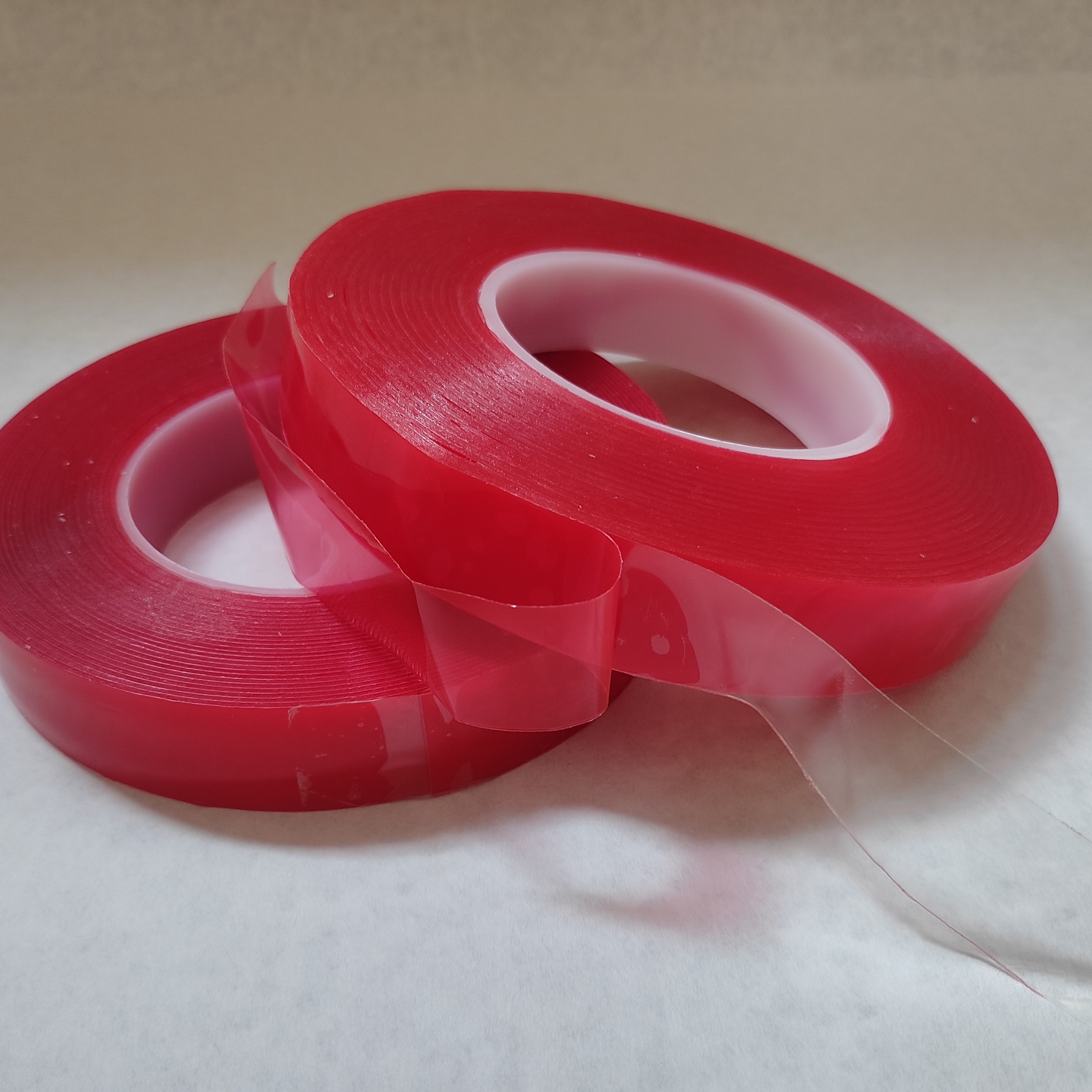

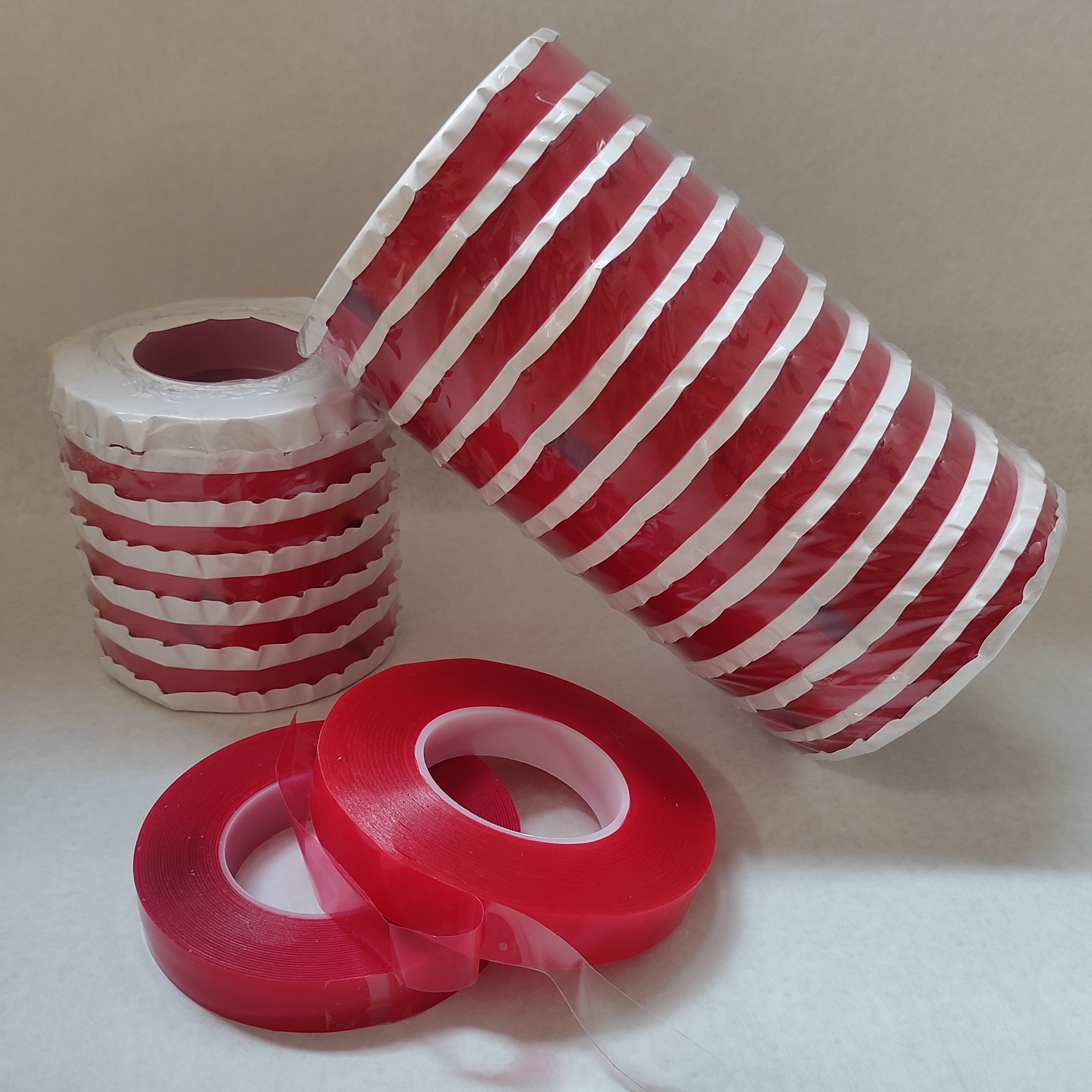

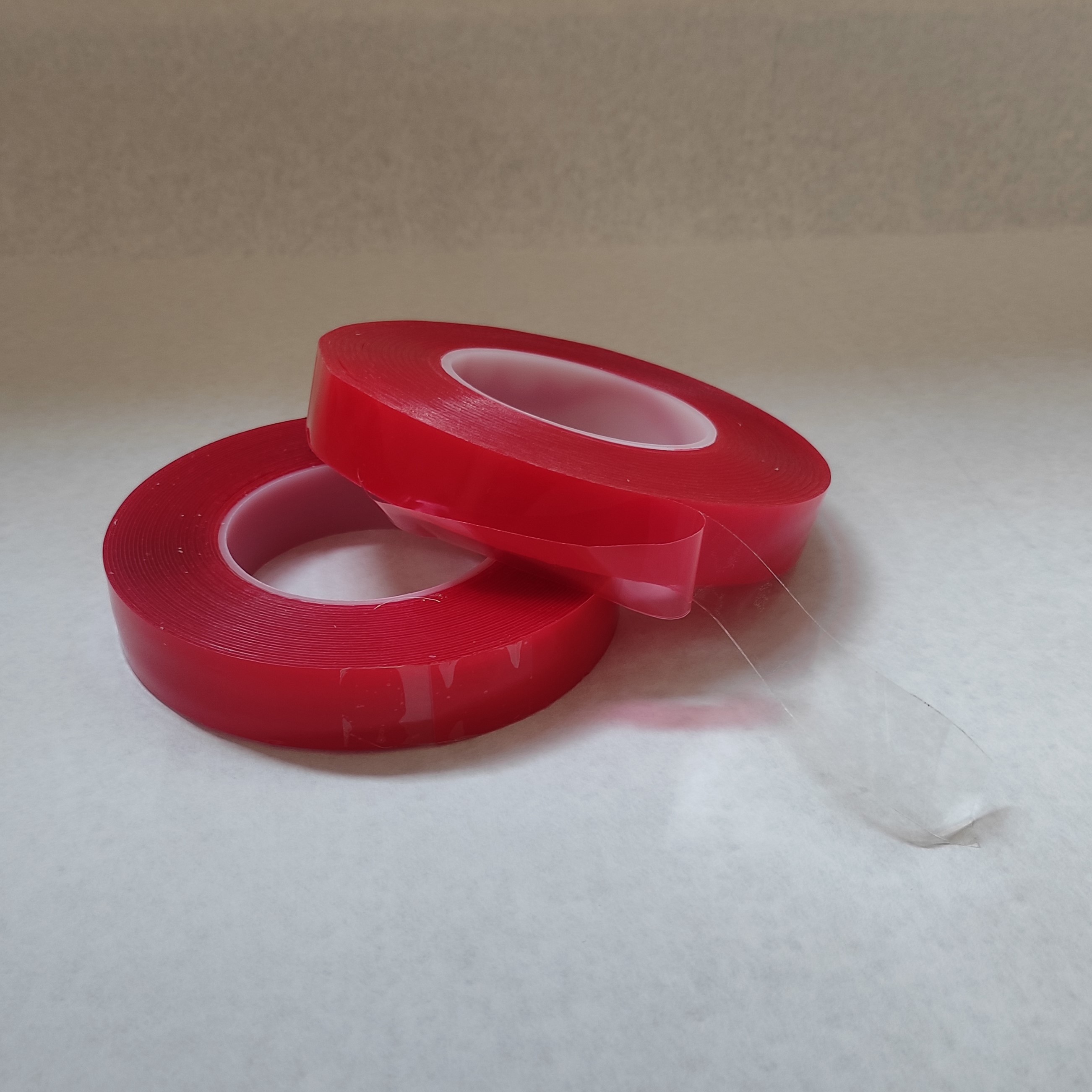

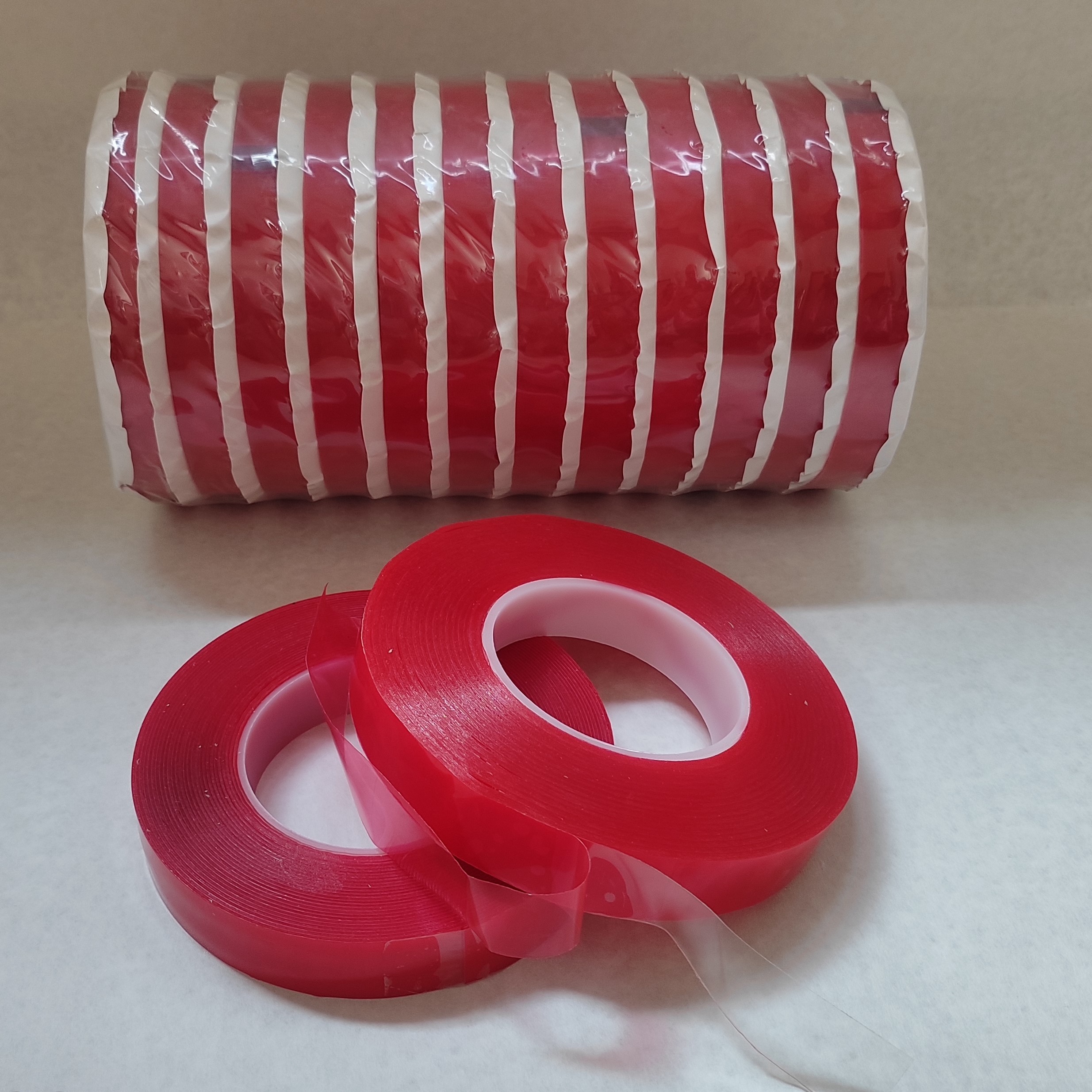

RPC200 Double-Sided Polyester Tape
Transparent polyester film coated on both sides with a strong solvent acrylic adhesive and a red easy-release plastic liner. Engineered for indoor and outdoor sign and display applications.
Key Features
- UV and temperature resistant for long-term outdoor performance
- Strong adhesion to metal, paper, and most plastics
- Operating temperature range: -40°C to +110°C
- Suitable for both indoor and outdoor use
- Excellent thermal, abrasion, and chemical resistance
- Flexible polyester film maintains performance under stress
- Shelf life: 6 to 12 months
- Trial orders of 1 roll accepted
Technical Data
| Parameter | Unit | Value |
|---|---|---|
| Size (log roll) | mm × m | 1240 × 45 |
| Thickness | micron | 209 |
| Liner thickness | micron | 80 |
| Adhesion to steel (open) | g/inch | 2103 |
| Adhesion to steel (close) | g/inch | 2203 |
| Shear (open side) | hours | 48+ |
| Shear (close side) | hours | 48+ |
| Tensile | kg/inch | 26.3 |
| Elongation | % | 169 |
Standard Sizes
Available in standard sizes of 23mm × 45m and 11mm × 45m rolls. Other sizes available on request.
Application Instructions
- Surface must be free from oil, solvent, water, and dust before application.
- Apply at room temperature between 15°C and 35°C for best performance.
