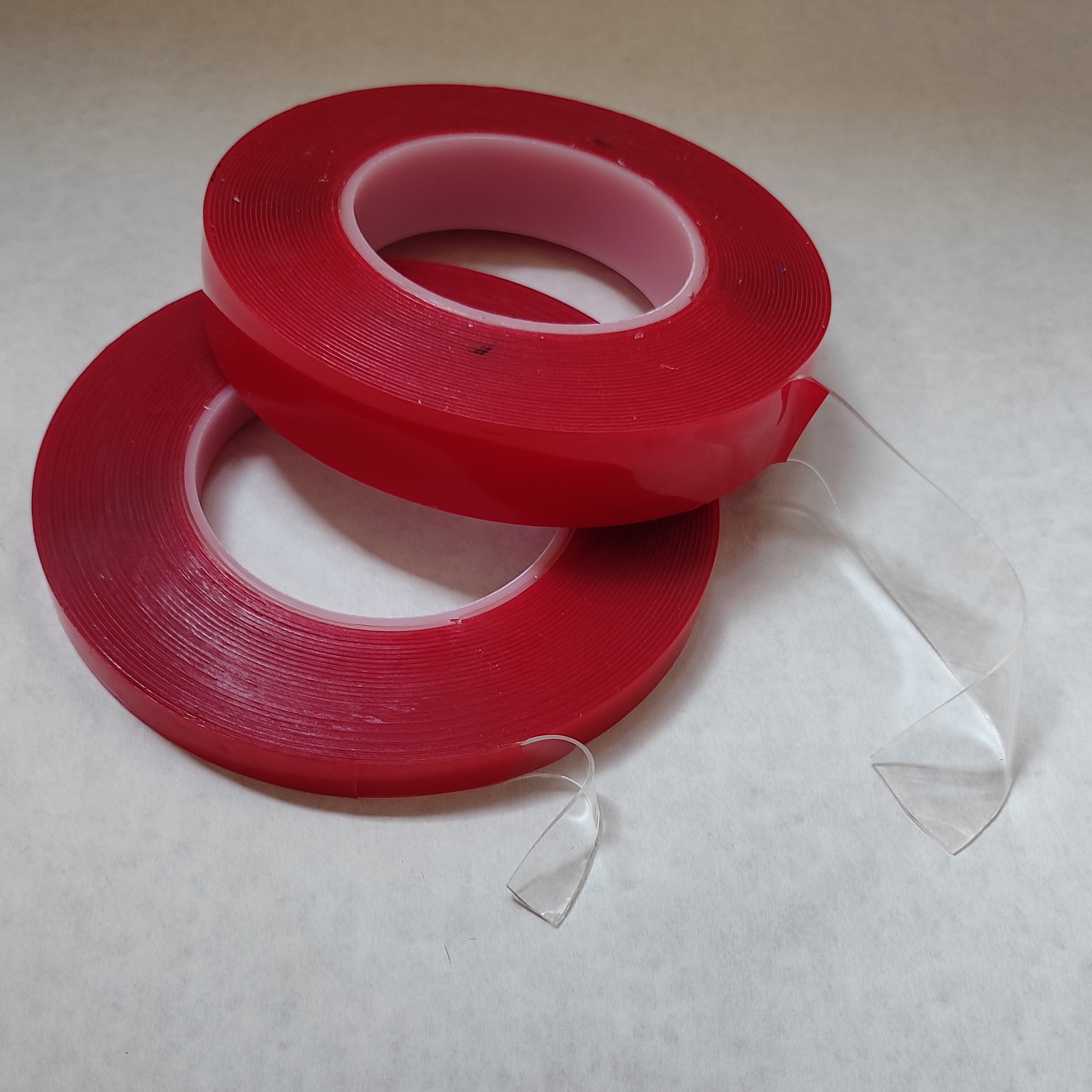

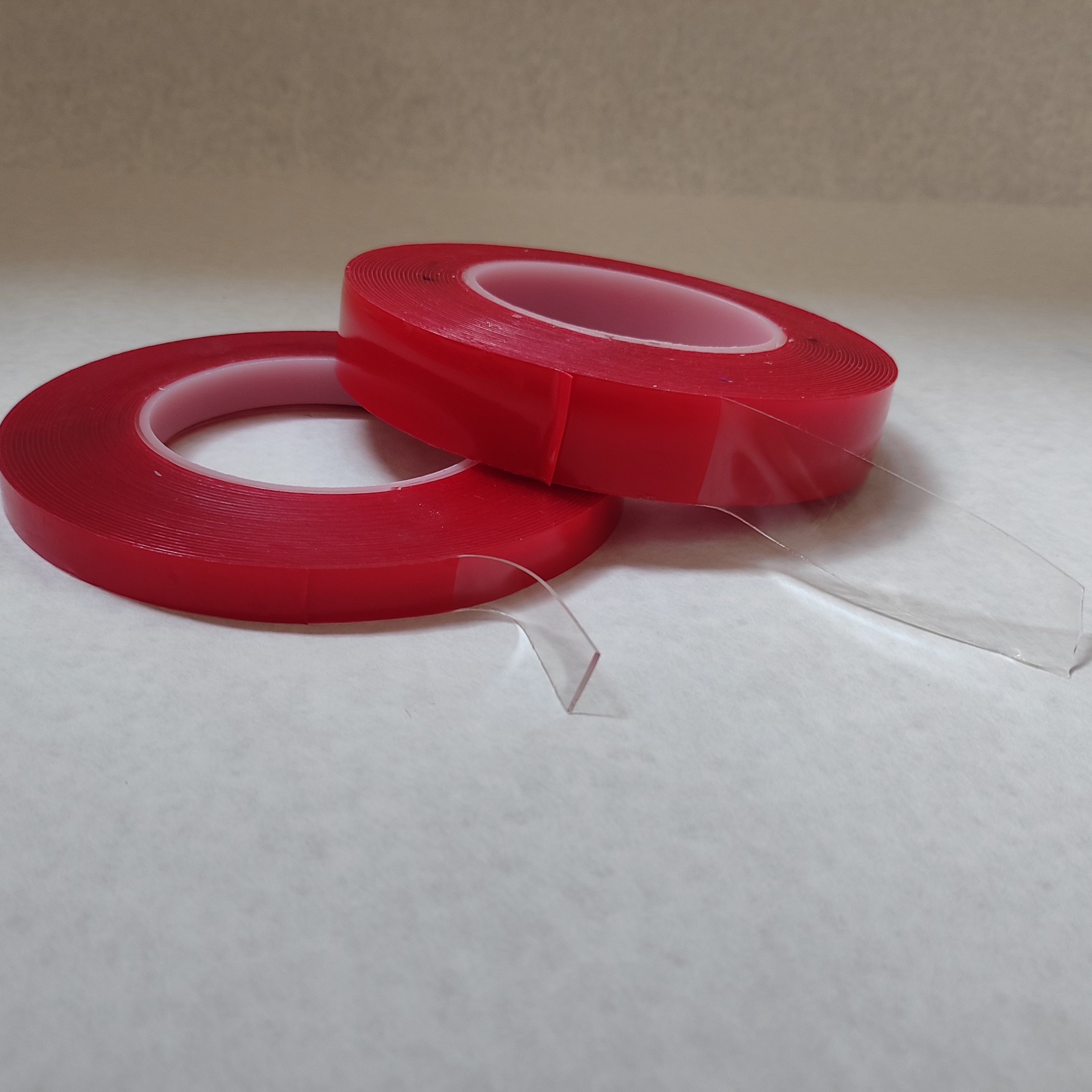

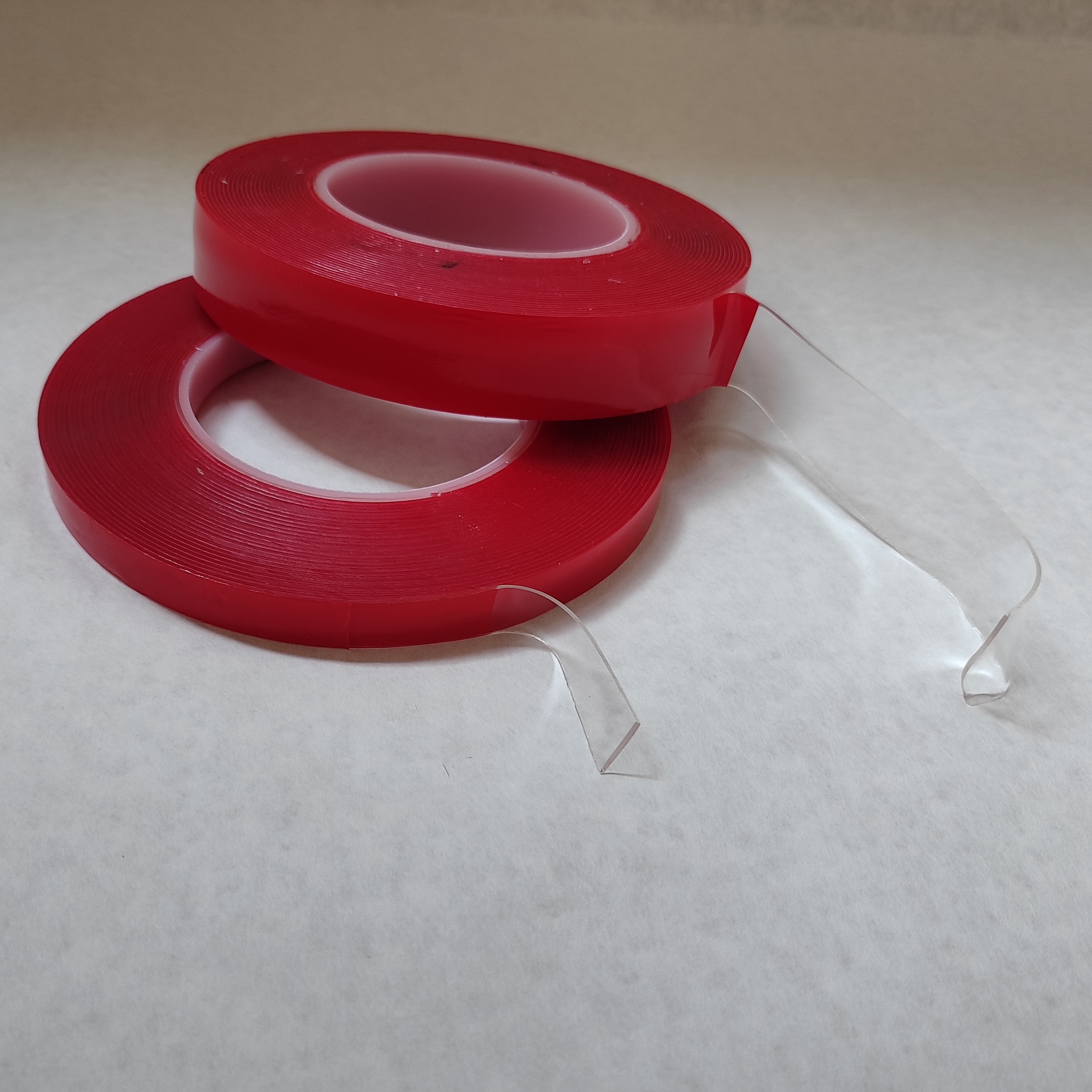

VHBC 1000 Double-Sided VHB Foam Tape
A very high bond double-sided tape made from modified acrylic adhesive and compressible acrylic foam. Designed for permanent mounting and bonding applications where mechanical fastening is not practical or desirable.
Key Features
- Very high bond strength — performs where other tapes fail
- Bonds to glass, plastics, painted panels, and metal
- High load carrying capacity per square inch
- Available in any width up to 900mm
- Ready stock in 12mm and 24mm rolls
- Wide operating temperature range
- Economical alternative to screws, rivets, and weld studs
- No screw holes, no spot weld marks, no surface damage
- Shelf life: 6 to 12 months
- Trial orders of 1 roll accepted
Technical Data
| Property | Unit | Value |
|---|---|---|
| Tape thickness | mm | 1 ± 0.05 |
| Liner type and colour | — | Red PE |
| Tape colour | — | Transparent (clear) |
| Elongation | % | 800 ± 20 |
| Peel strength — initial (20 min) | gf/25mm | 2000 min |
| Peel strength — normal (24 hrs) | gf/25mm | 3000 min |
| Dynamic shear — initial (20 min) | kgf/cm² | 1.5 min |
| Dynamic shear — normal (24 hrs) | kgf/cm² | 2.00 min |
Standard Sizes
Ready stock in 12mm and 24mm rolls. Any width up to 900mm available in standard 10m lengths. Custom lengths available on request.
